Attachment and Cleated Timing Belt Conveyor

• Frame: 80 mm tall, dual t-slot aluminum extrusion
• Pulley: AT10 pitch, 32 tooth
• Width: 80 mm and 120 mm
• Length: 500 mm to 10,000 mm
• Load: 1,500 lbs.
• Speed: Up to 200 fpm; Constant or Variable speed options
• Voltage: All standard US, Mexico and Canadian voltages
• Belting: AT10 Timing Belt; available with M4 inserts in the belt or cleats ultrasonically welded to the top surface, also available are a number of belt coatings including nylon and grip top
• Accessories: Compatible with all mk North America side rails and supports

• ZRF-P 2040 Technical Document [3.3 MB]
• ZRF-P 2040 Catalog Pages [1.3 MB]
• Brochure, VersaMove [22.5 MB]
• Brochure, Aluminum Conveyor [18.3 MB]
• Catalog, Aluminum Conveyor [52.3 MB]

• Constructed using our mk North America 2040.02 series structural profile
  • 80 mm tall anodized aluminum frame
  • Dual t-slots along the length of the frame, each side
• UHMW-PE slider bed, 7.5 mm thick – guided for added belt tracking
• Available in end drive model
• All conveyor lengths are per your requirements – no preset lengths to choose from
• Single lane and multi-lane set ups
• Available in 80 mm and 120 mm standard lane widths
• Belts are 60 mm and 100 mm wide (respectively)
• Lengths from 500 mm to 10,000 mm
• Maintenance free dual-sealed ball bearings
• Belt pitch is AT10
• Available with 3 types of belting
  • Standard timing belt with various coatings (rough top, nylon, etc) – Nylon wrapped for VersaMove Ultra

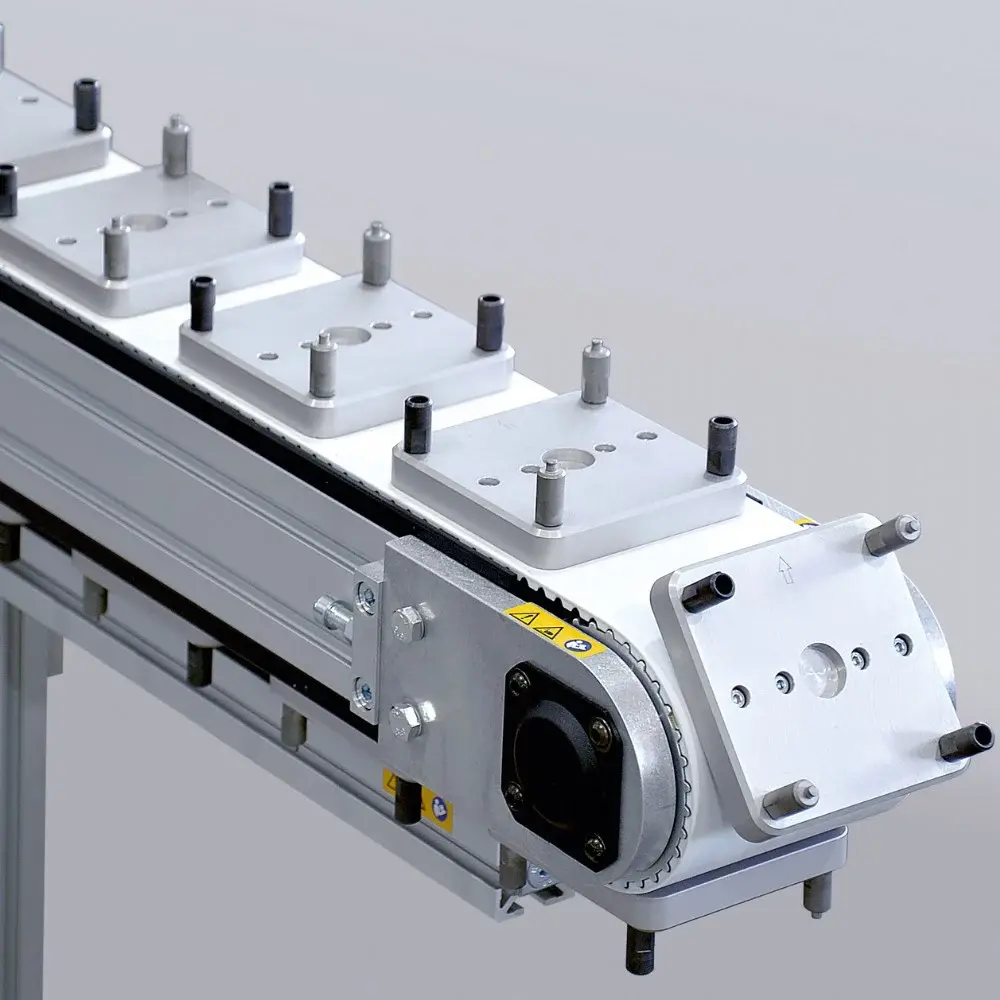

  • Standard timing belt with ultrasonically welded urethane attachments

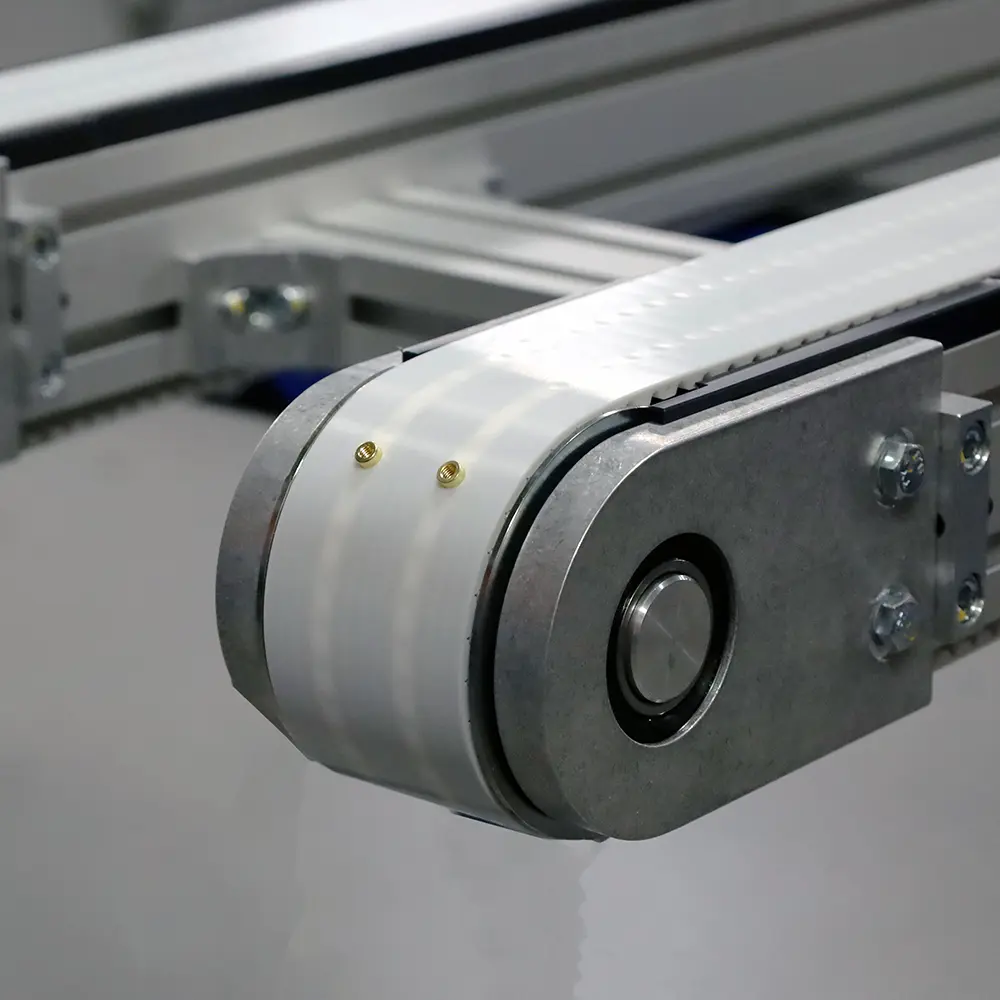

  • Standard timing belt with inserts in the tooth of the belt (M4)

Conveyor Options Include:

• Covers
• Encoders
• Specialty belt covers
• Product escapements
• Side tables and workstations
• Drip pan and product catch pans
• Custom motor and control options

Engineered Solution Options Include:

• Custom fixtures
