VersaMove
Automated Pallet Conveyor Systems
mk North America manufacturers workpiece pallet conveyors over three different platforms. This allows for the pallet-handling system to be tailored to meet your specific needs. mk North America is your partner for pallet conveyor systems, providing support before, during and after the sales process. mk believes in offering not only a better product, but also a better solution.
Automated Pallet-Handling Conveyor System Benefits
- VersaMove is a non-synchronous workpiece pallet-based automated conveyor system designed to improve manufacturing productivity and product quality while allowing for maximum process flexibility.
- VersaMove pallet conveyors and pallet transfer modules are offered in three platforms: VersaMove Standard, VersaMove Plus, and VersaMove Ultra to suit a wide range of applications. Each platform offers a complete series of pallet transfer, positioning, and control modules to satisfy the varied requirements of manual or automated assembly operations.
- VersaMove pallet-handling conveyors are pre-engineered and modular. The system can be easily expanded or reconfigured as your manufacturing needs change. Our workpiece pallet conveyors can be used in a variety of layouts, or combined for even greater flexibility in planning production processes.
| Series | Pallet Sizes | Customizable | Conveyor Types | Special Features | Conveyor speeds |
|---|---|---|---|---|---|

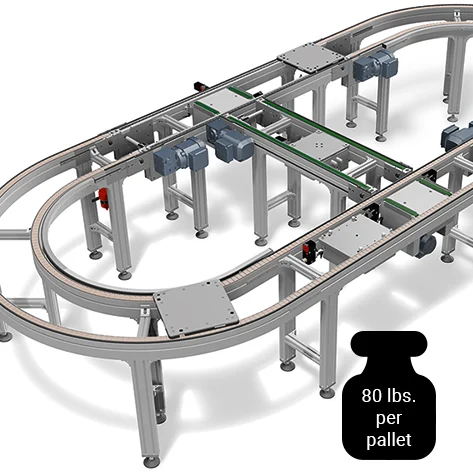

 VersaMove Standard - 80 Pounds per Pallet |
240 x 240 mm to 400 x 400 mm | Yes |
|
Curved conveyors available | Up to 90 fpm |
 VersaMove +Plus - 250 Pounds per Pallet |
400 x 400 mm to 1,040 x 1,040 mm | Yes |
|
Versatile options | Up to 90 fpm |
 VersaMove Ultra - 800 Pounds per Pallet |
640 x 640 mm to 1,200 x 1,200 mm | Yes |
|
High load capacity | Up to 80 fpm |
mk VersaMove Advantages
- Belt Options – Flat Top Chain, Timing Belt and Accumulating Roller Chain are included in our versatile belting options. We are confident we can help find the solution perfect for you.
- System Modules – Offered within the three VersaMove platforms are innovative modules that will compliment your pallet conveyor system. Modules include pallet stops, positioning modules, and vertical transfer units, both single and dual right angle lift and transfers, and more! Each module is an integral piece of the VersaMove system.
- Configurations – Utilizing a footprint that best fits your needs, these standard configurations and be combined and configured to maximize your production and workflow. mk offers six standard configurations including In-Line, Carousel, Serpentine, Over/Under, Parallel and Rectangular.
-

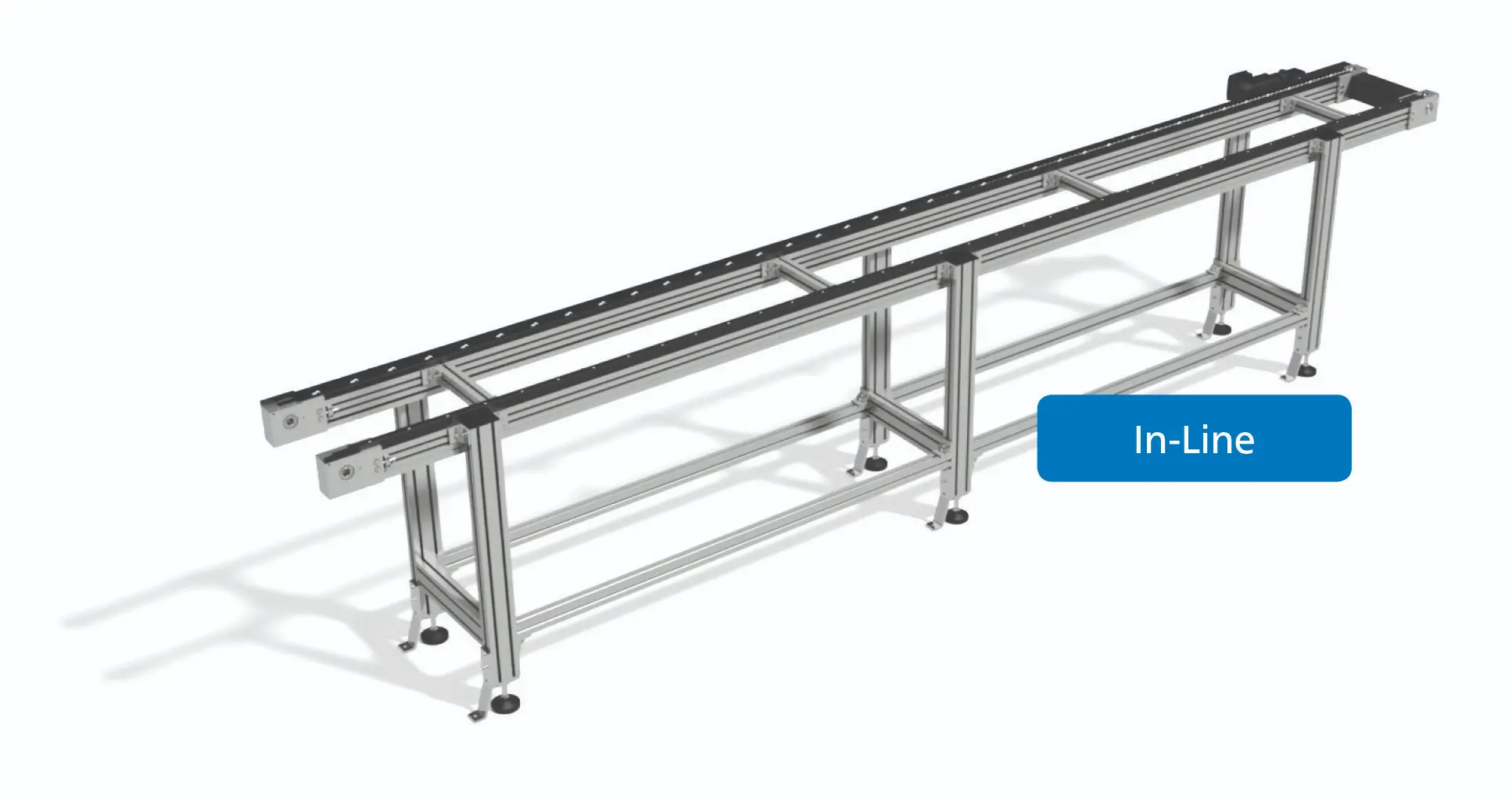

In-Line: VersaMove Standard, Plus and Ultra -

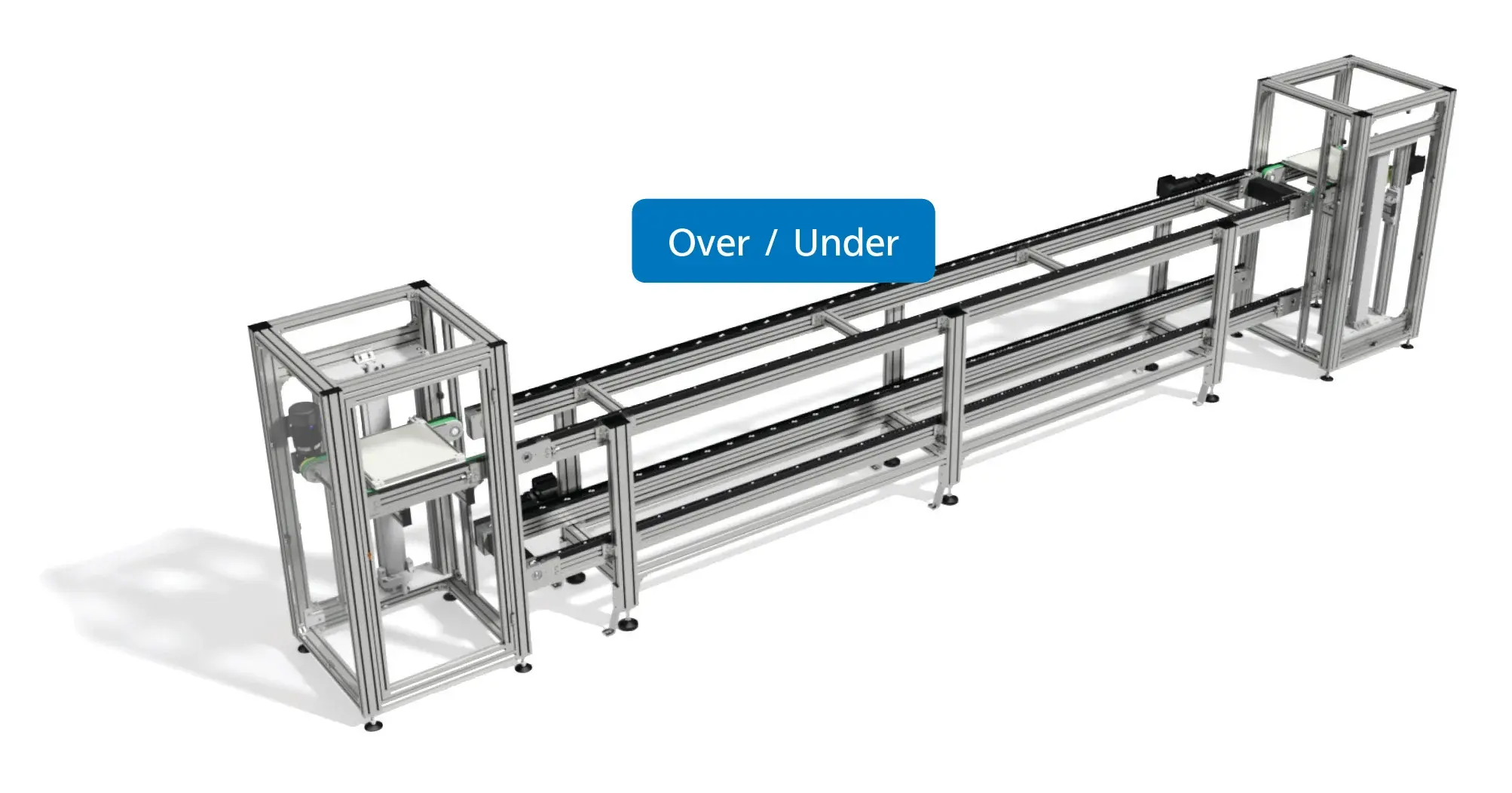

Over/Under: VersaMove Standard, Plus and Ultra -

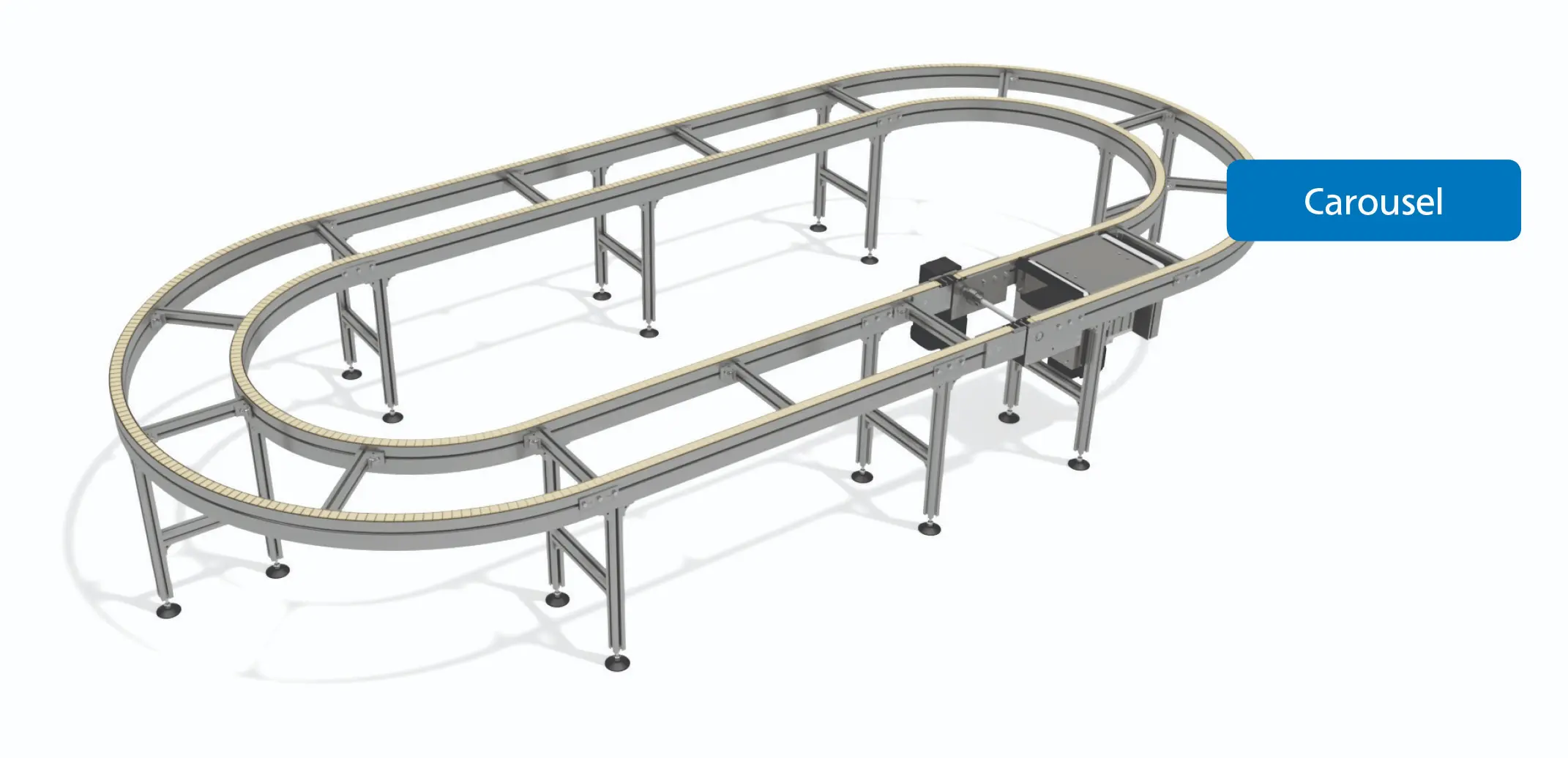

Carousel: VersaMove Standard -

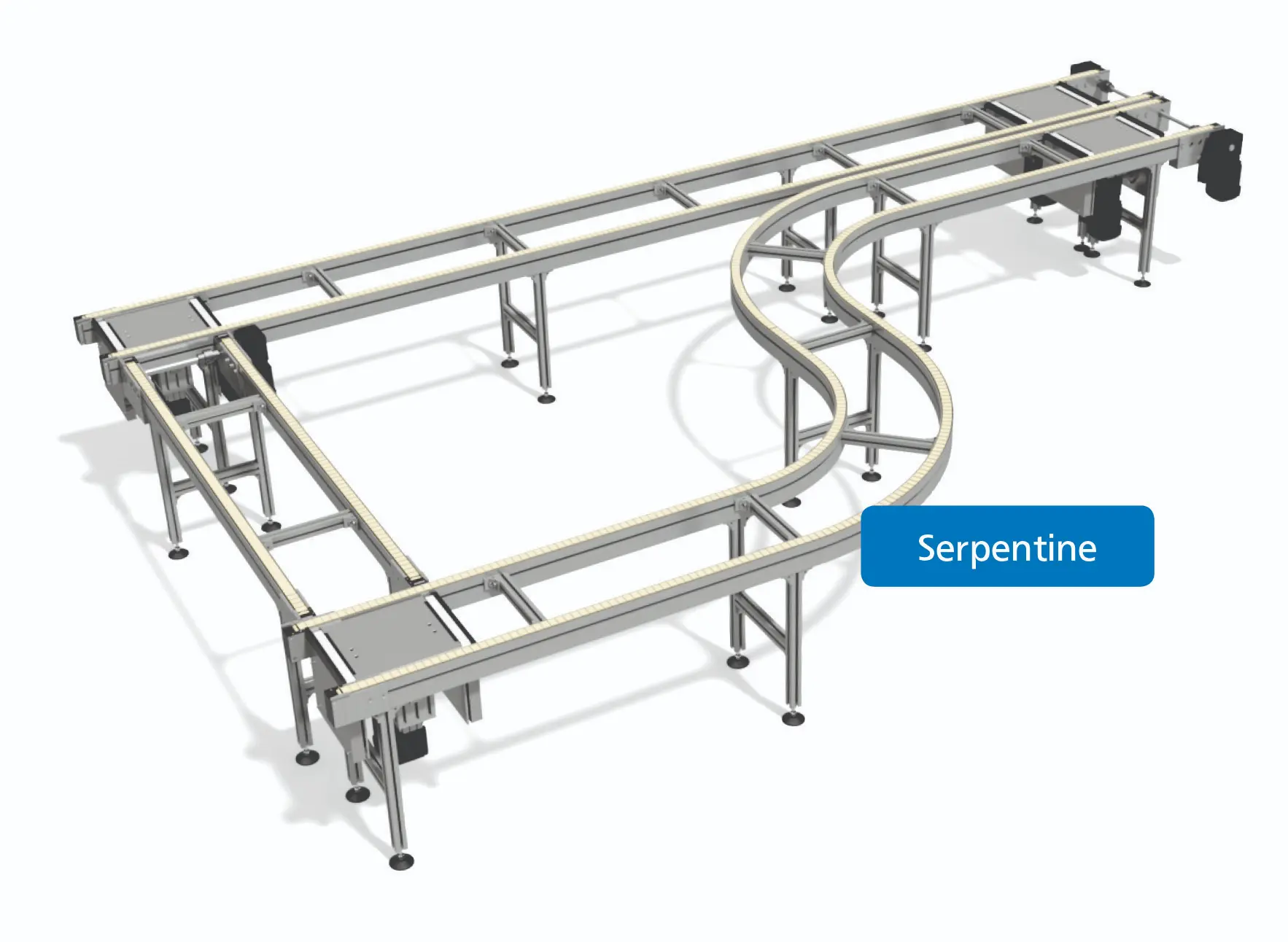

Serpentine: VersaMove Standard -

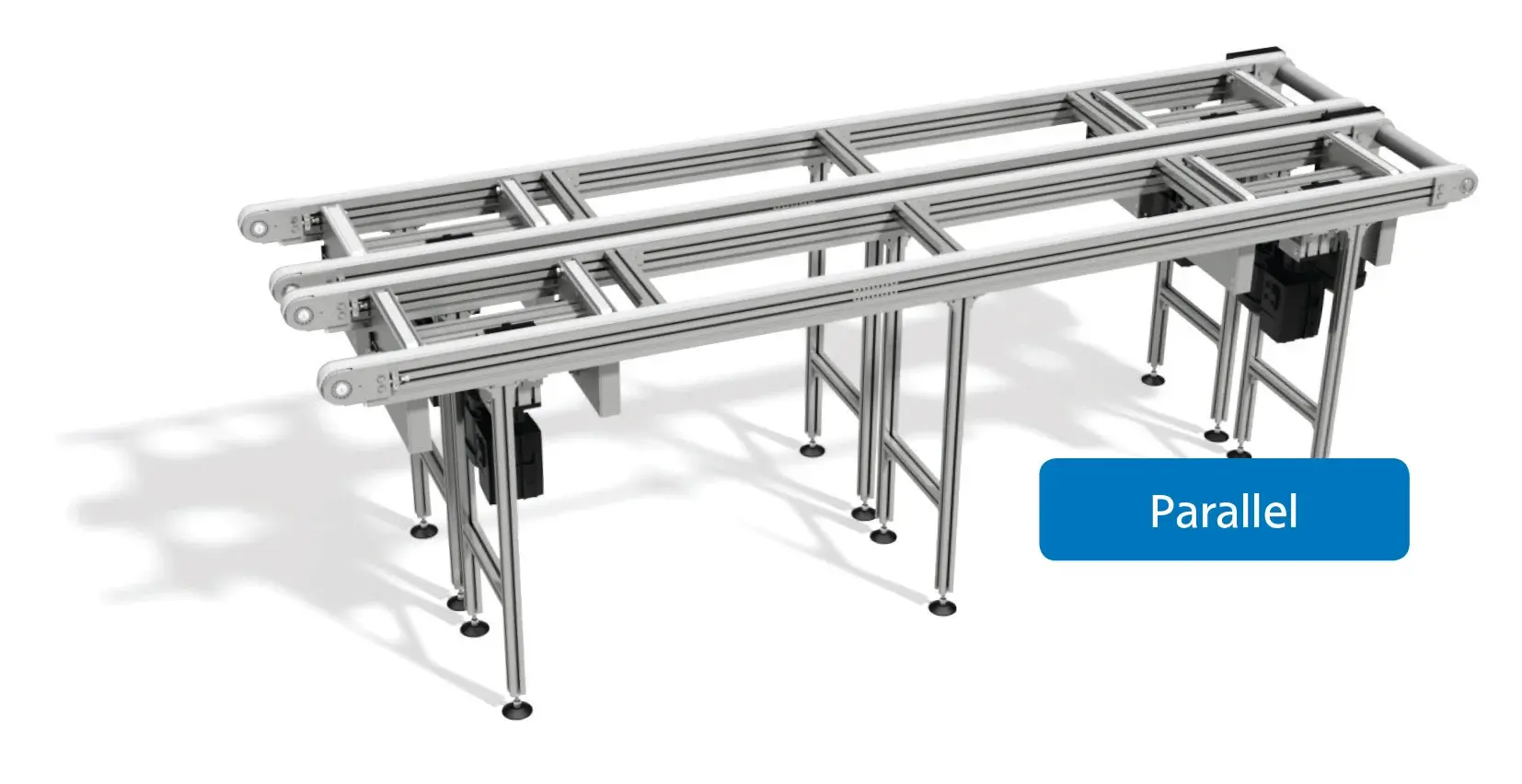

Parallel: VersaMove Standard, Plus and Ultra -

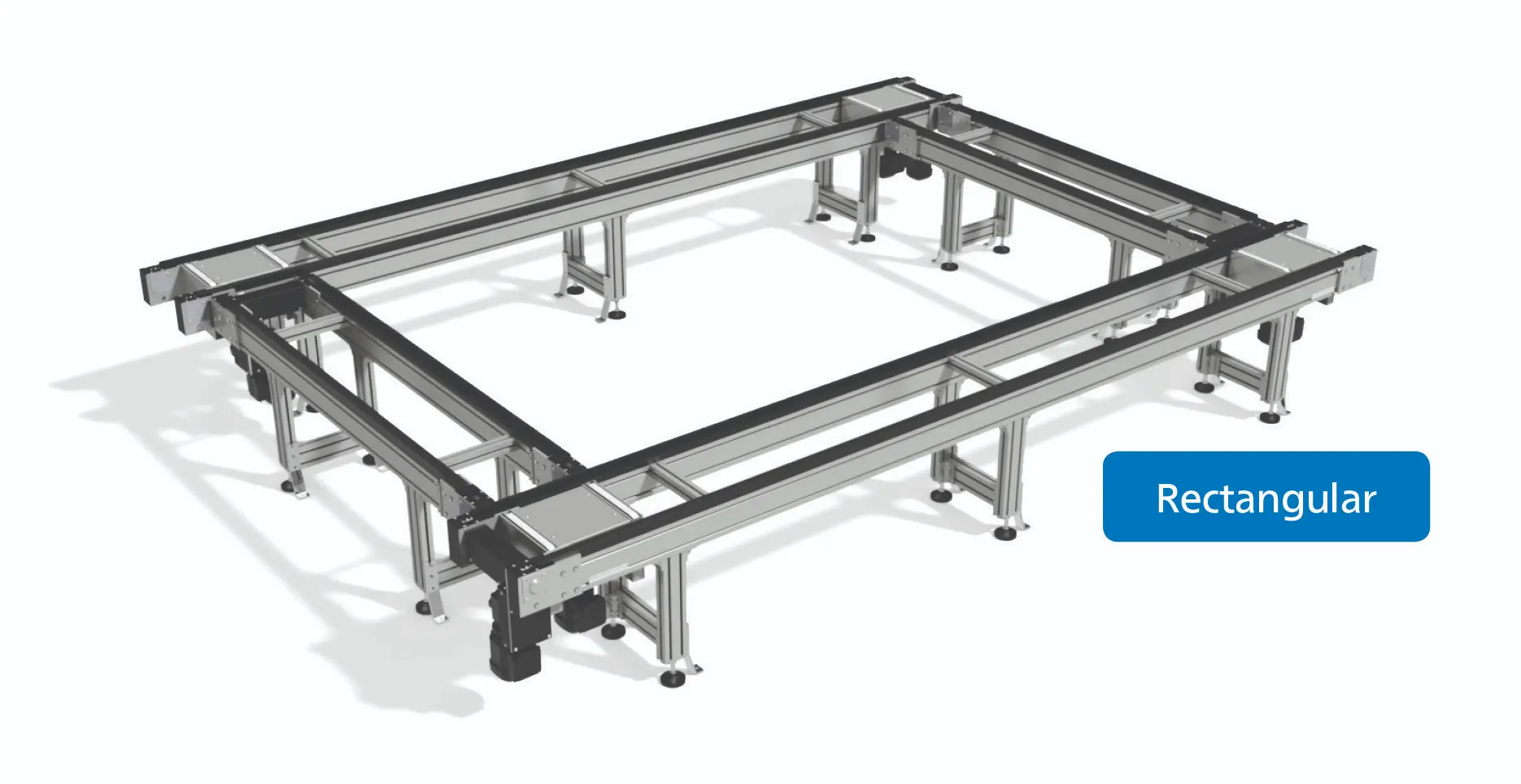

Rectangular: VersaMove Standard, Plus and Ultra
