- Frame: Constructed out of mk North America anodized aluminum extrusion with a UHMW-PE wear surface, 98 mm tall x 45 mm wide lane, single t-slot per side
- Width: Designed for pallets 240 mm wide up to 400 mm wide
- Load: Up to 80 lbs. per pallet load, 700 lbs. per drive
- Speed: Up to 90 fpm
- Length: Up to 20,000 mm
- Voltage: All standard US, Mexico and Canadian voltages
- Chain: Side flexing flat top chain, 1.25-inch wide
- Side Rails: Incorporated into the frame design
- Stands: Compatible with all mk North America stand designs
- Modules: A wide selection available, refer to System Modules page
Light Duty Flat Top Chain Conveyor

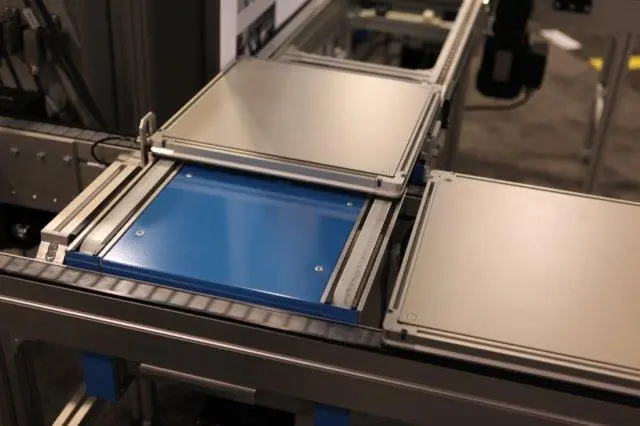

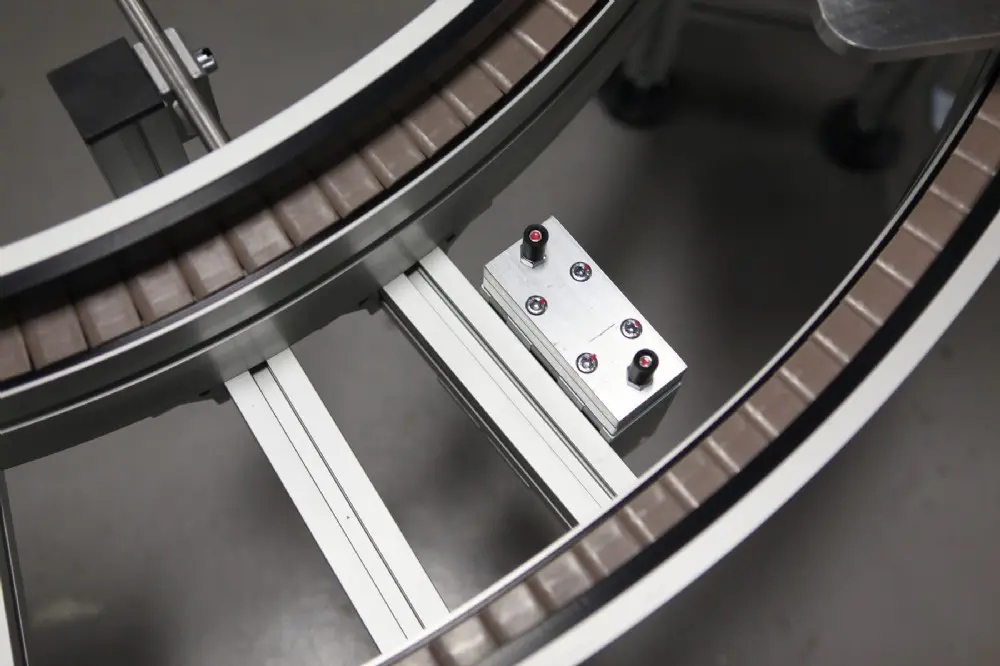

The side-flexing chain conveyor, FPF-P 2045, is ideal for conveying small pallets around corners and loops. It also allows the leading edge of the pallet to be maintained (which is critical in some processes) without the use of lift and rotate units; providing a cost saving design.
Select a CAD Model to Configure
Product Information for Light Duty Flat Top Chain Conveyor
Catalogs, Resources & Downloads for Light Duty Flat Top Chain Conveyor
Technical Specifications for Light Duty Flat Top Chain Conveyor
- Constructed using our mk North America 2045 series structural profile
- 98 mm tall anodized aluminum frame
- T-slots along the length of the conveyor for ease of mounting stands, side rails, and custom accessories
- The chain returns within the frame profile
- This provides a safer design
- A removable slot cover allows access to chain for cleaning and maintenance
- UHMW-PE slider bed with integrated side rail edge
- Dual sealed bearings for low maintenance design
- Maintenance free dual-sealed ball bearings
- Compatible with all mk North America 50 system profiles and components and most mk North America 40 system profiles and components
- CE Models available
