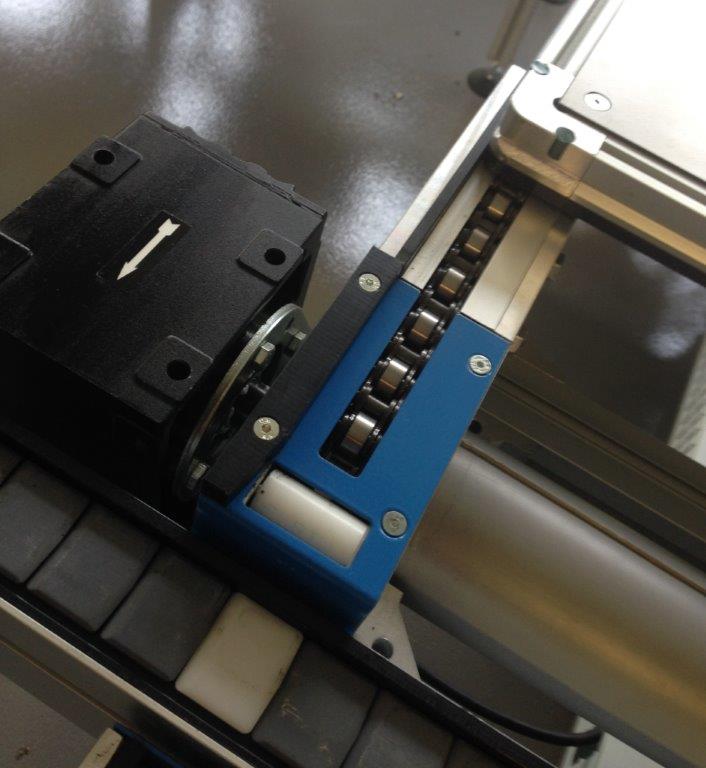

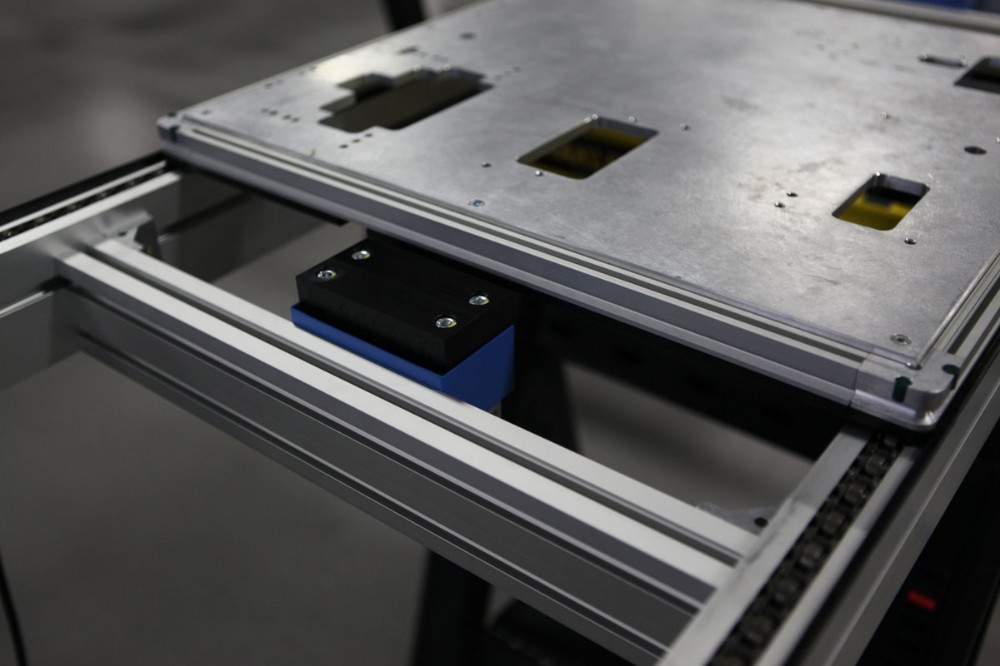

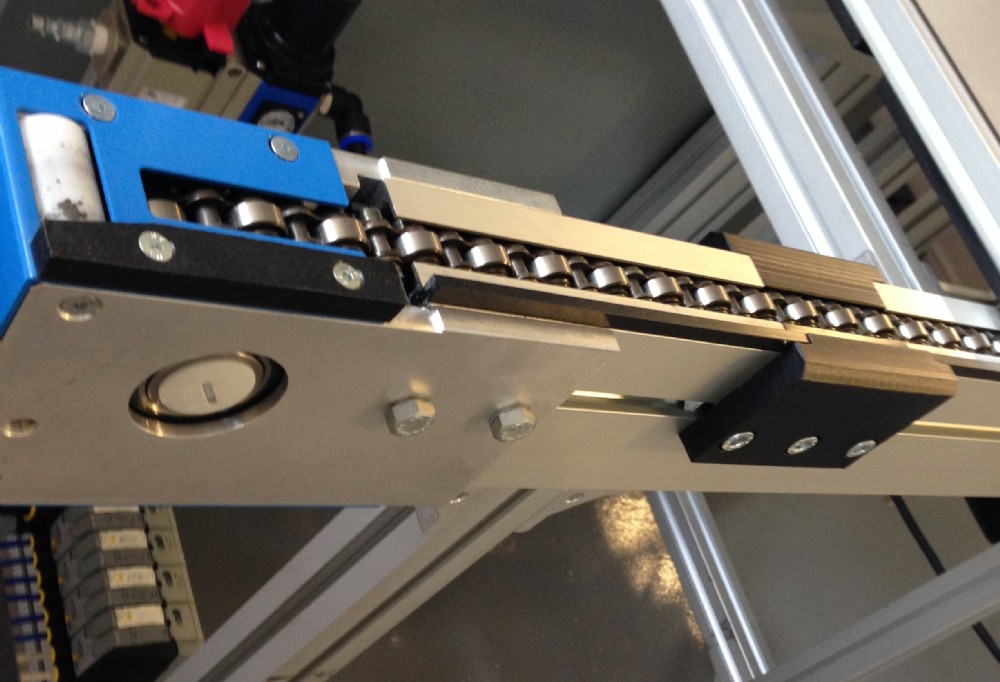

Light Duty Accumulating Roller Chain Conveyor

The accumulating roller chain conveyor, SRF-P 2045, is ideal for a process requiring many light weight small pallets to be accumulated.  The accumulating roller chain provides a low back pressure conveying surface; which allows for many pallets to be stacked in a straight. The use of mk North America pneumatic stopping devices allows for small pallets to be released from accumulation one at a time, or in other levels as your job requires.

Select a CAD Model to Configure

Request a Quote

Catalogs, Resources & Downloads for Light Duty Accumulating Roller Chain Conveyor
  • Frame: Constructed out of mk North America anodized aluminum extrusion with a UHMW-PE wear surface, 98 mm tall x 45 mm wide lane, single t-slot per side
  • Width: Designed for pallets 240 mm wide up to 400 mm wide
  • Load: Up to 80 lbs. per pallet load, 1,650 lbs. per drive
  • Speed: Up to 90 fpm
  • Length: Up to 20,000 mm
  • Voltage: All standard US, Mexico and Canadian voltages
  • Chain: Accumulating Roller Chain, plastic or steel rollers
  • Side Rails: Incorporated into the frame design
  • Stands: Compatible with all mk North America stand designs
  • Modules: A wide selection available, refer to System Modules page

Technical Specifications for Light Duty Accumulating Roller Chain Conveyor

Technical Specifications for Light Duty Accumulating Roller Chain Conveyor
  • Constructed using our mk North America 2045 series structural profile
  • 98 mm tall anodized aluminum frame
    • T-slots along the length of the conveyor for ease of mounting stands, side rails, and custom accessories
    • The chain returns within the frame profile
    • This provides a safer design
  • A removable slot cover allows access to chain for cleaning and maintenance
  • UHMW-PE slider bed with integrated side rail edge
  • Dual sealed bearings for low maintenance design
  • Positively driven via sprocket – allows conveyor to operate in either direction
  • Maintenance free dual-sealed ball bearings
  • Compatible with all mk North America 50 system profiles and components and most mk North America 40 system profiles and components
  • CE Models available
