Narrow Flexible Chain Conveyor

The VersaFlex A06 is a versatile flexible chain conveyor. Capable of conveying products horizontally and vertically. This conveyor allows for the use of multiple curves and can be configured in an alpine conveyor configuration.

Select a CAD Model to Configure

Request a Quote

Flexible Conveyor Features

Frame Width: 65 mm
Chain Width: 63 mm
Product Width: 15-140 mm
Length: up to 40 m
Curves: minimum radius of 150 mm
Load: Up to 330 lbs.
Speed: Up to 165 fpm
- Constant or Variable speed options
Voltage: All standard US, Mexico and Canadian voltages

Catalogs, Resources & Downloads for Narrow Flexible Chain Conveyor

Technical Specifications for Narrow Flexible Chain Conveyor

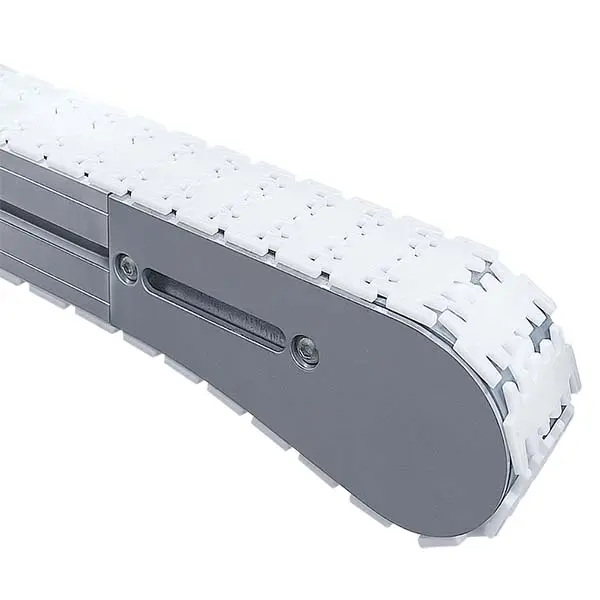

Anodized aluminum frame
Features a double t-slot, see image below
Frame width is 65 mm
- Chain width is 63 mm
Frame height is 73 mm
Chain pitch is 25.4 mm
Maximum product weight
- Horizontal conveying: 22 lbs.
- Vertical conveying: 4.4 lbs

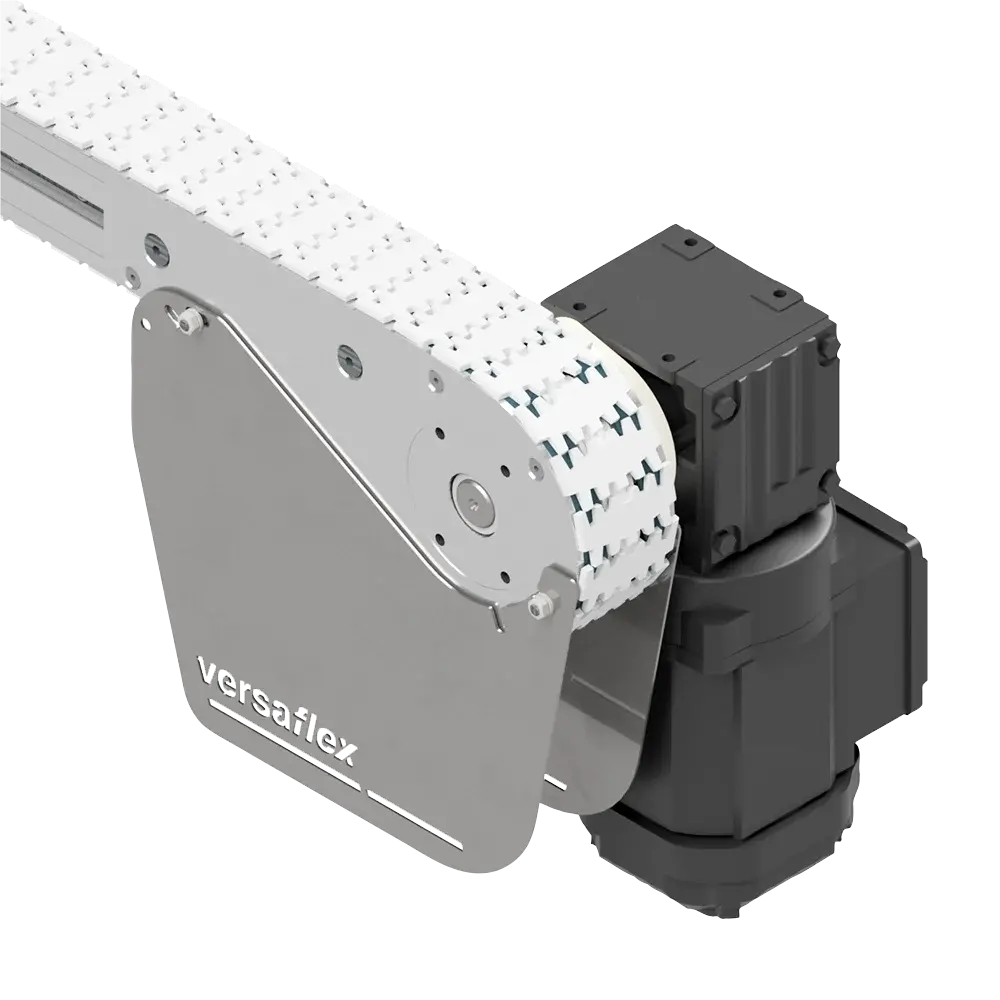

Features a direct drive for a economical and space saving design
Minimum curve radius is 150 mm

Product Options for Narrow Flexible Chain Conveyor

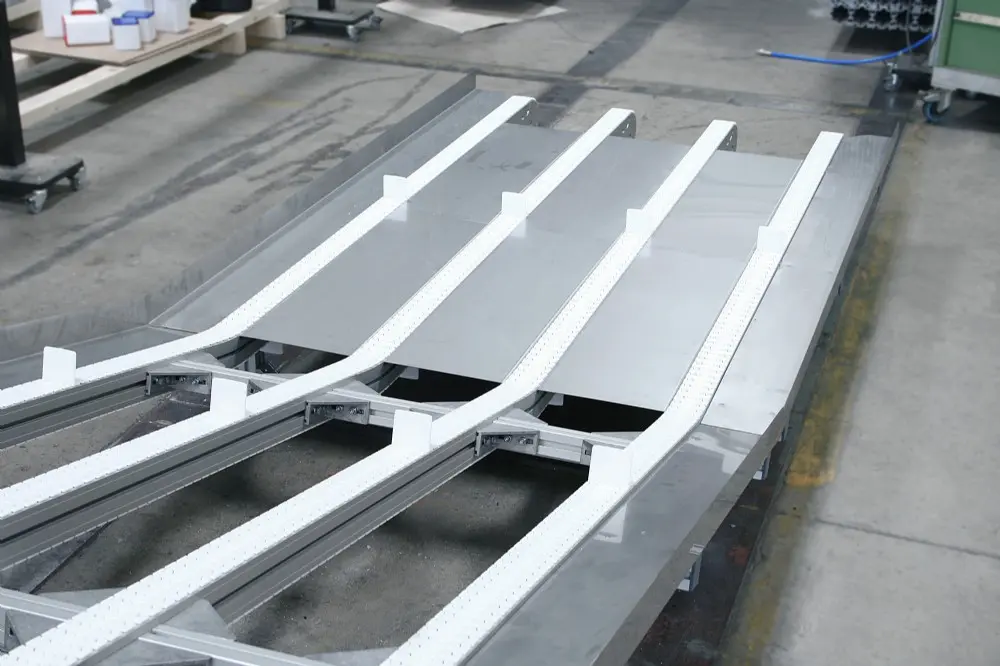

Small product end transfers
Side transfers
Stand options includes
- Tri-pod base with leveling feet
- Pedestal base design

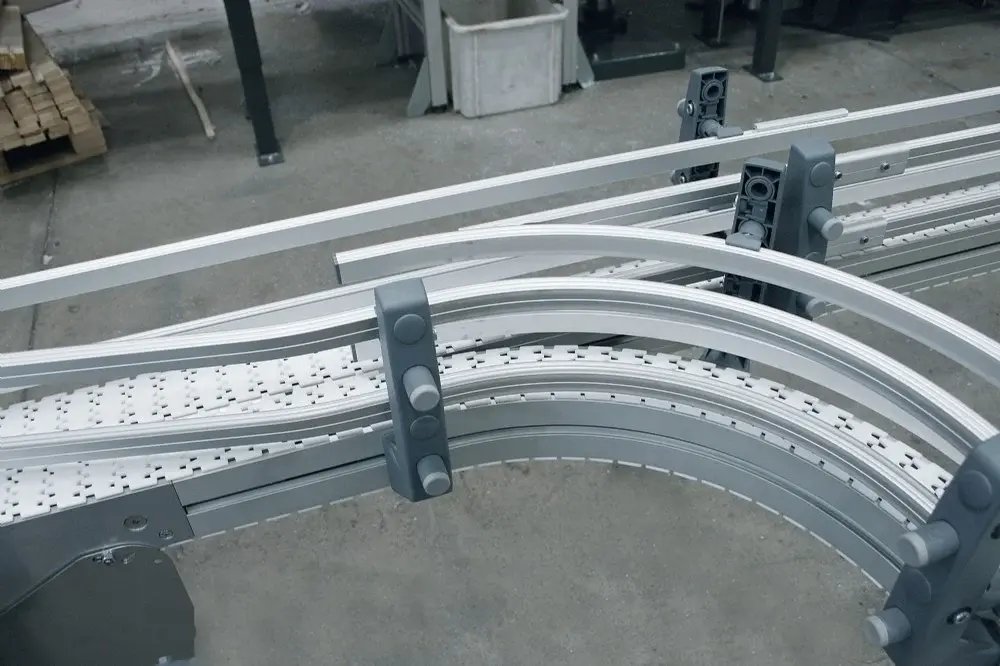

Side Rail options includes
- Fixed side rails, removable
- Adjustable side rails, removable
- Side rails with product hold down rails
A wide variety of chain options

Configurations for Narrow Flexible Chain Conveyor

Horizontal Conveyor
Incline Conveyor
Alpine Conveyor
Recirculating Conveyor
Wedge Conveyor
Vertical Conveyor
