VersaFlex A10

VersaFlex A10 is capable of incline and vertical conveying, alpine configurations, and side gripping applications. VersaFlex A10 is truly a versatile flexible chain conveyor designed to handle almost any industrial conveying application.

Select a CAD Model to Configure

Request a Quote

Wide Flexible Chain Conveyor Features

Frame Width: 105 mm
Chain Width: 103 mm
Product Width: 25-300 mm
Length: up to 30 m
Curves: minimum radius of 170 mm
Load: Up to 440 lbs.
Speed: Up to 165 fpm
- Constant or Variable speed options
Voltage: All standard US, Mexico and Canadian voltages

Catalogs, Resources & Downloads for Wide Flexible Chain Conveyor

Technical Specifications for Wide Flexible Chain Conveyor

Anodized aluminum frame
Features a double t-slot, see image below
Frame width is 105 mm
- Chain width is 103 mm
Frame height is 86 mm
Chain pitch is 35.5 mm
Maximum product weight
- Horizontal conveying: 66 lbs.
- Vertical conveying: 44 lbs
Features a direct drive for a economical and space saving design

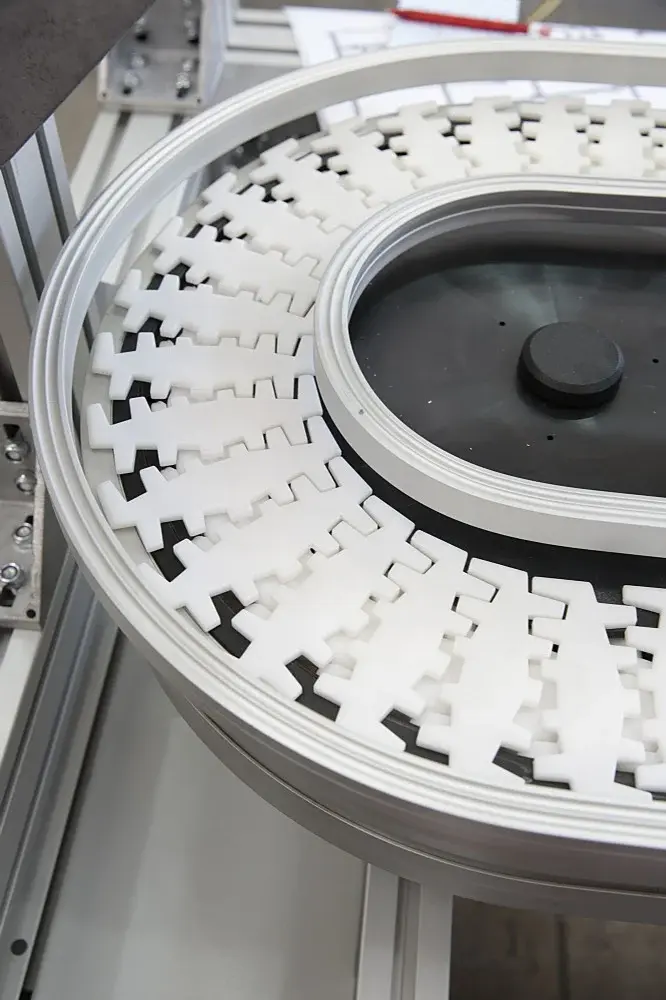

Minimum curve radius is 170 mm

Product Options for Wide Flexible Chain Conveyor

Small product end transfers
Side transfers
Stand options includes
- Tri-pod base with leveling feet
- Pedestal base design

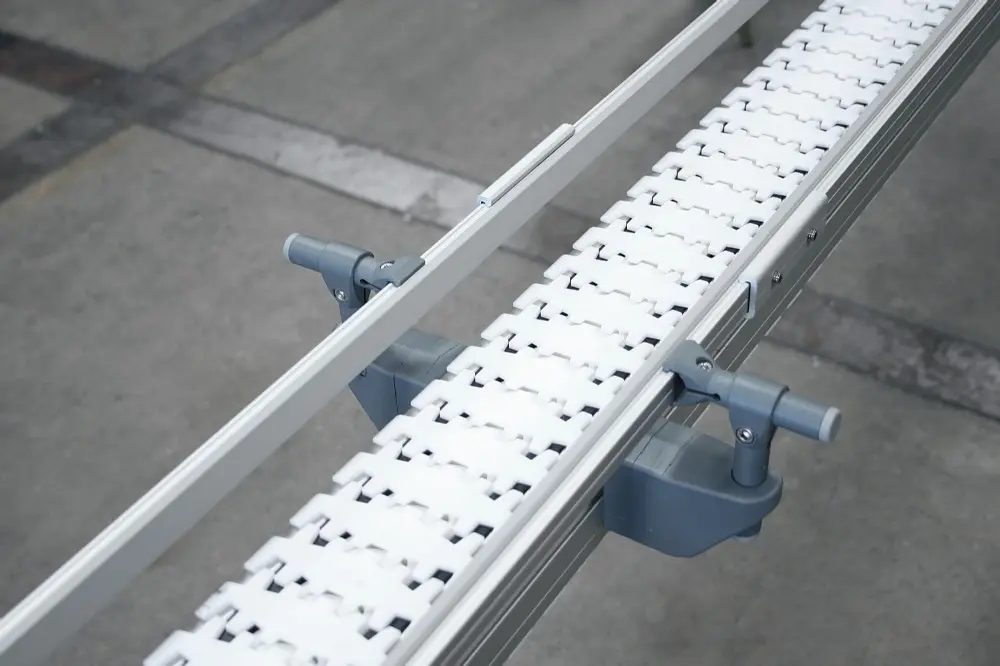

Side Rail options includes
- Fixed side rails, removable
- Adjustable side rails, removable
- Side rails with product hold down rails
A wide variety of chain options
