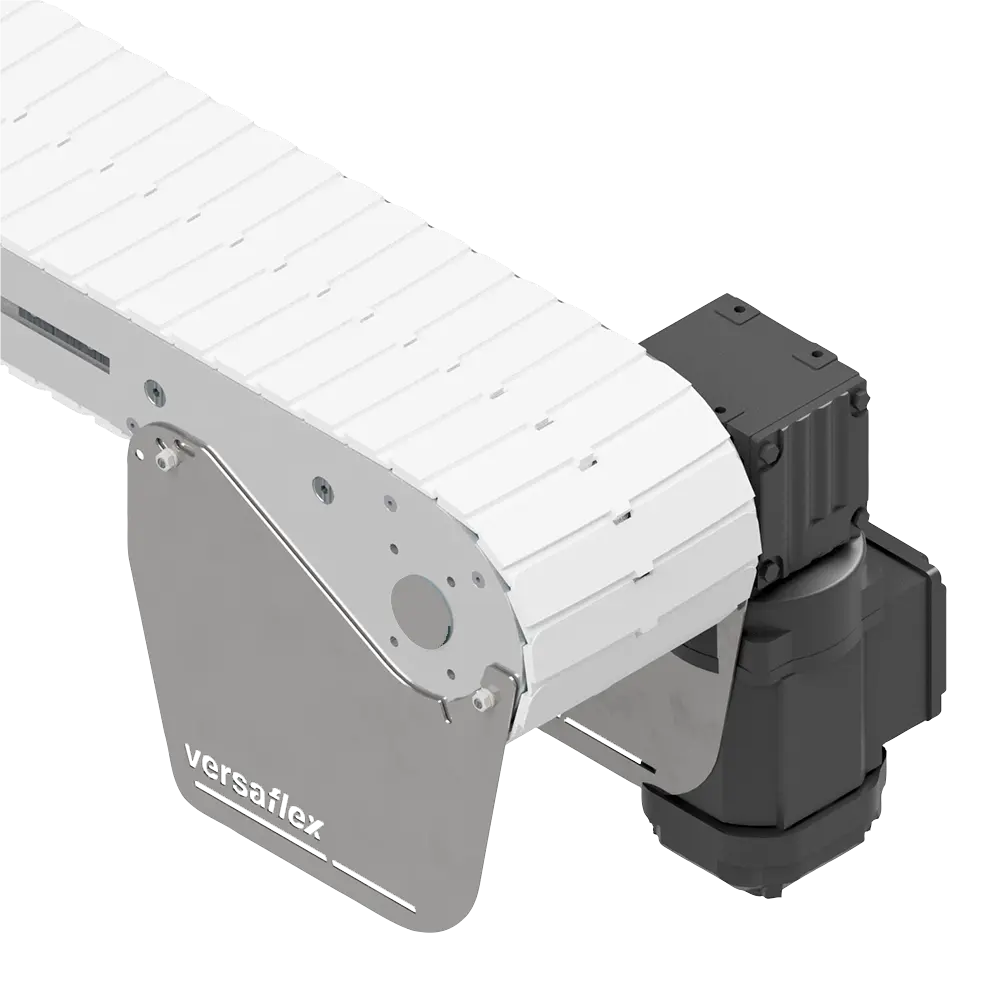

Wide Flexible Table Top Chain Conveyor

The VersaFlex A17 is flexible table top chain conveyor for products 25 to 300 mm wide across a variety of industries including packaging, automotive and consumer goods.

Request a Quote

Wide Flexible Table Top Chain Conveyor Features
  • Frame Width: 182 mm
  • Chain Width: 175 mm
  • Product Width: 70-400 mm
  • Length: up to 30 m
  • Curves: minimum radius of 500 mm
  • Load: Up to 440 lbs.
  • Speed: Up to 165 fpm
    • Constant or Variable speed options
  • Voltage: All standard US, Mexico and Canadian voltages

Catalogs, Resources & Downloads for Wide Flexible Table Top Chain Conveyor

Technical Specifications for Wide Flexible Table Top Chain Conveyor
  • Anodized aluminum frame
  • Features a double t-slot, see image below
  • Frame width is 195 mm
    • Chain width is 175 mm
  • Frame height is 95 mm
  • Chain pitch is 33.5 mm
  • Maximum product weight
    • Horizontal conveying: 33 lbs.
    • Vertical conveying: 22 lbs
  • Features a direct drive for a economical and space saving design
  • Minimum curve radius is 500 mm

Product Options for Wide Flexible Table Top Chain Conveyor
  • Small product end transfers
  • Side transfers
  • Stand options includes
    • Tri-pod base with leveling feet
    • Pedestal base design
  • Side Rail options includes
    • Fixed side rails, removable
    • Adjustable side rails, removable
    • Side rails with product hold down rails
  • A wide variety of chain options

Configurations for Wide Flexible Table Top Chain Conveyor
