- Frame Width: 300 mm
- Chain Width: 295 mm
- Product Width: 25-300 mm
- Length: up to 30 m
- Curves: minimum radius of 700 mm
- Load: Up to 440 lbs.
- Speed: Up to 165 fpm; Constant or Variable speed options
- Voltage: All standard US, Mexico and Canadian voltages
Wide Flexible Table Top Chain Conveyor

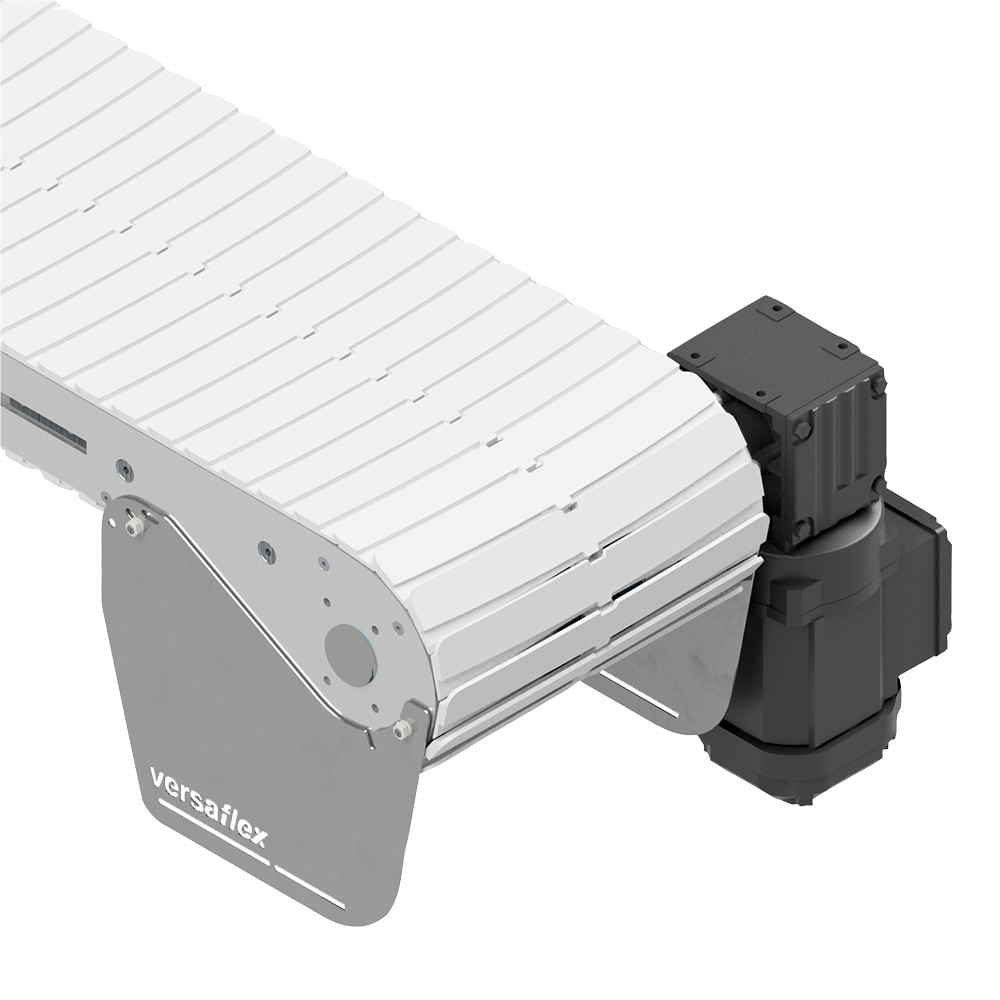

The VersaFlex A29 is wide flexible flat top chain conveyor for products 25 to 300 mm wide, that might require more support across the width than what would be conveyed on a VersaFlex A17.
Wide Flexible Table Top Chain Conveyor Features
Catalogs, Resources & Downloads for Wide Flexible Table Top Chain Conveyor
Technical Specifications for Wide Flexible Table Top Chain Conveyor
- Anodized aluminum frame
- Features a double t-slot, see image below
- Frame width is 300 mm
- Chain width is 295 mm
- Frame height is 95 mm
- Chain pitch is 33.5 mm
- Maximum product weight
- Horizontal conveying: 33 lbs.
- Vertical conveying: 22 lbs
- Features a direct drive for a economical and space saving design
- Minimum curve radius is 700 mm
Product Options for Wide Flexible Table Top Chain Conveyor
- Small product end transfers
- Side transfers
- Stand options includes
- Tri-pod base with leveling feet
- Pedestal base design
- Side Rail options include:
- Fixed side rails, removable
- Adjustable side rails, removable
- Side rails with product hold down rails
Configurations for Wide Flexible Table Top Chain Conveyor
-
Horizontal Conveyor -
Incline Conveyor
