- Frame: 80 mm deep aluminum profile frame
- Width: 164 mm up to 1,005 mm
- Length: 475 mm to 10,000 mm
- Load: Up to 330 lbs.
- Speed: Up to 100 fpm
- Constant or Variable speed
- Voltage: All standard US, Mexico and Canadian voltages
- Belting: Plastic modular belt, flat top, flush grid, and textured
- Accessories: Compatible with all mk North America side rails and supports

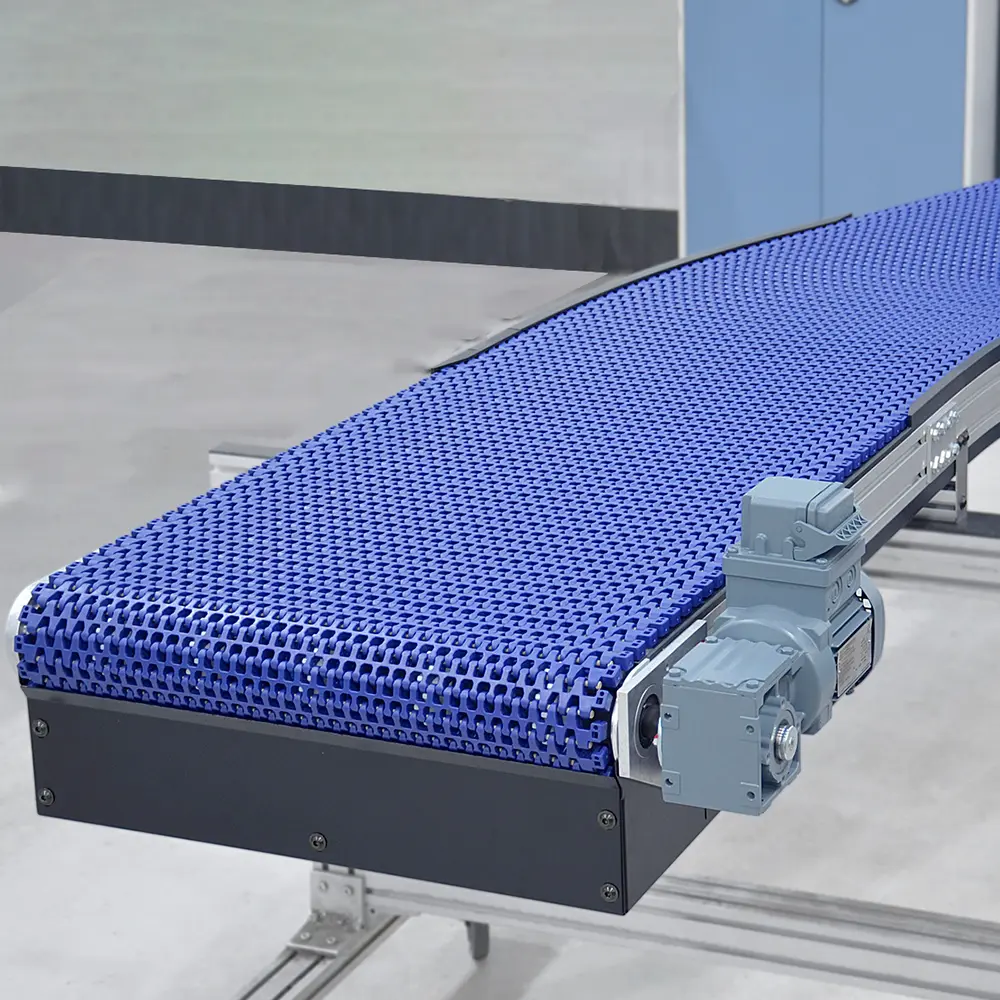

Curve Plastic Belt Conveyor

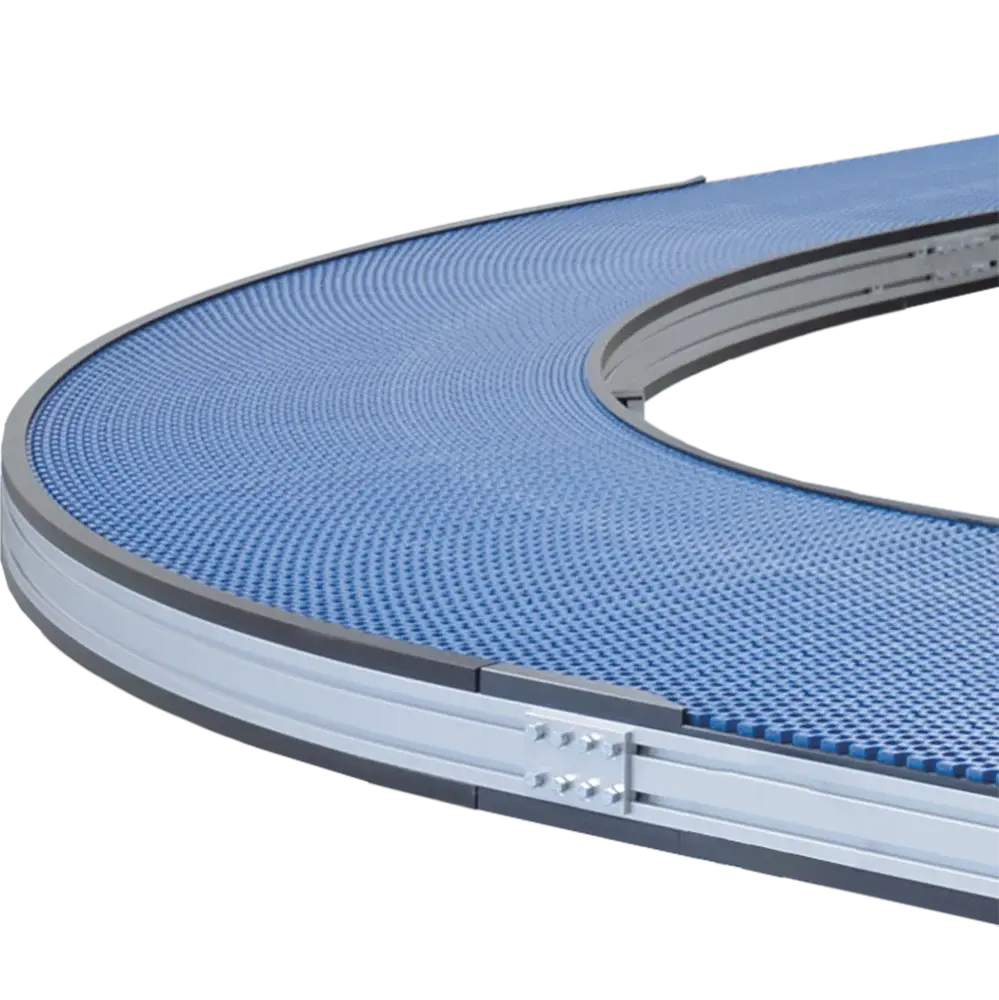

The KMF-P 2040 is a curve plastic belt conveyor, that comes in twelve different widths (164 mm to 1,005 mm) and features two different curves, 90° and 45° (with 180° possible) with three standard layout options that can be modified to meet your needs. The KMF-P 2040 curved plastic modular belt conveyors also allows for minor elevation changes as well.
The plastic belt on this conveyor is built in interlocking segments, making it possible to replace a damaged portion without replacing the entire conveyor belt, thus resulting in cost savings over the life of the conveyor.
The KMF-P 2040, curve plastic belt conveyor, features a usable width of just 30 mm less the outside frame width, which makes mk North America’s curved plastic modular belt conveyor one of the most streamlined in the marketplace.
Select a CAD Model to Configure
Curve Plastic Belt Conveyor Features
Catalogs, Resources & Downloads for Curve Plastic Belt Conveyor
Technical Specifications for Curve Plastic Belt Conveyor
- Constructed using our mk North America 2040 series structural profile
- 80 mm tall anodized aluminum frame
- Dual t-slots along the length of the frame, per side
- Standard 45° and 90° curves available
- Three different end drive options
- Three different layouts available
- UHMW-PE slider bed
- UHMW-PE underside belt support
- Maintenance-free dual-sealed ball bearings
- Positively driven via a sprocketed drive roll
- Modular belting benefits
- Quick and easy change of damaged belt sections without the need to replace the entire belt
- No need to disassemble the conveyor or remove it from its stands
- Allows for the ability to have the conveyor width greater than the length
- Compatible with all mk North America 40 system profiles and components and most mk North America 50 system profiles and components
- Large selection of conveyor accessories
Product Options for Curve Plastic Belt Conveyor
- Covers
- Encoders
- Lane dividers
- Product escapements
- Specialty belt materials
- Infeed and discharge chutes
- Side tables and workstations
- Drip pan and product catch pans
- Custom motor and control options
- Custom curve angles and radii are available
