AP10 Pallet Conveyor

mk North America’s VersaFlex AP10 is for medium duty pallet-handling applications, and is ideal for handling automotive components, larger battery cell applications, machining center operations, inspection and testing centers to name a few.

This conveyor system has a repeat accuracy of ± 0.1 mm; when used with mk North America pallets and locating devices. The pallets come in two different sizes, see below, and can be machined to easily accept your product fixtures.

Request a Quote

Conveyor Features of the AP10 Pallet Conveyor
  • Frame Width: 105 mm
  • Chain Width: 102 mm
  • Pallet Sizes:
    • 250 mm W x 225 mm L (weight = 4 lbs)
    • 300 mm W x 300 mm L (weight = 5.1 lbs)
  • Conveyor Length: up to 40 m
  • Load: Up to 66 lbs. per pallet, including weight of pallet above
  • Speed: Up to 165 fpm; Constant or Variable speed options
  • Voltage: All standard US, Mexico and Canadian voltages

Catalogs, Resources & Downloads for AP10 Pallet Conveyor

Technical Specifications for AP10 Pallet Conveyor

AP10 Medium Duty Pallet Conveyor Features

  • Repeat accuracy of ± 0.1 mm when used with mk North America’s stops and locating devices
  • Cushioned and non-cushioned pallet stops
  • Pallet diverter features double acting pneumatic rotary drive
  • Pallet locating device includes necessary pallet stop

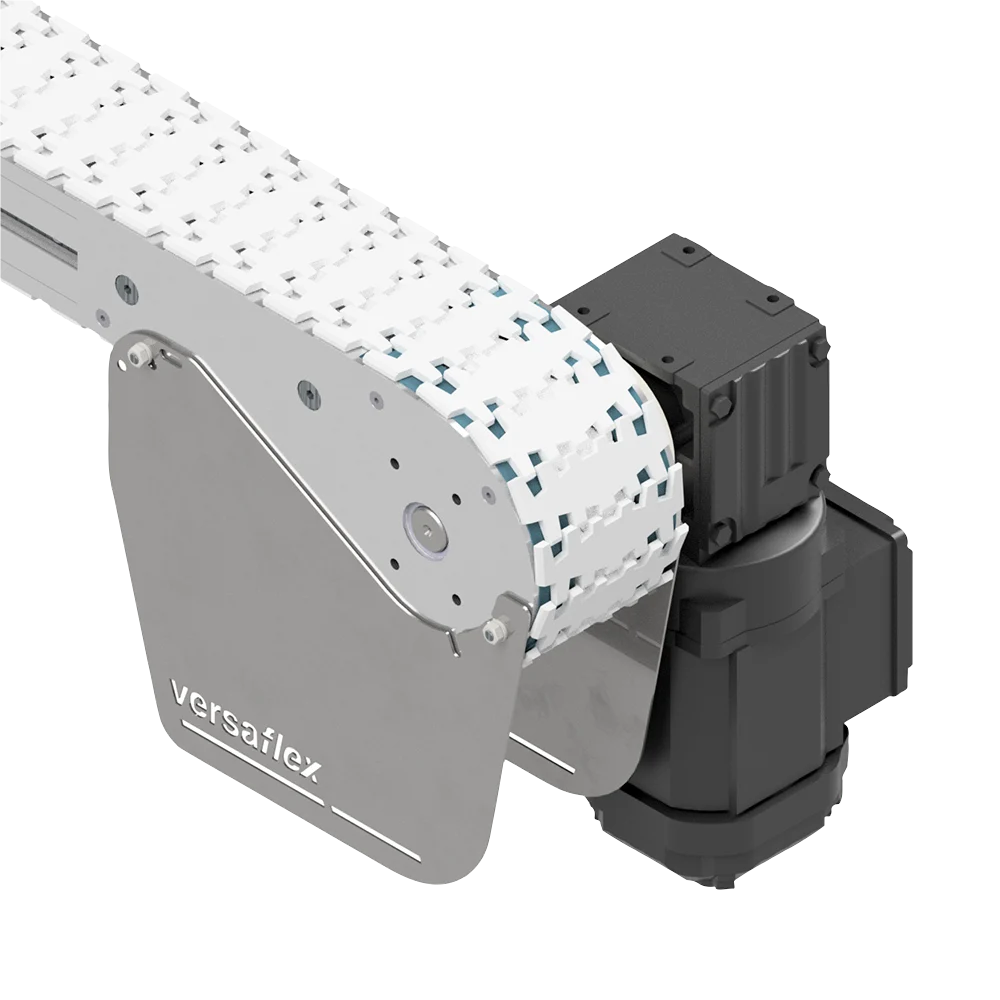

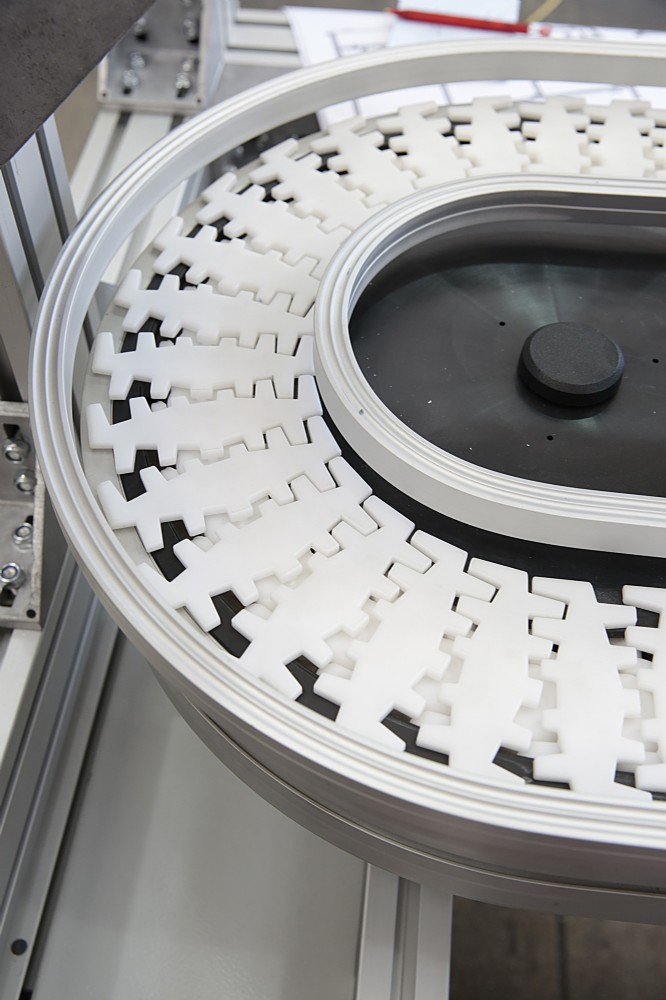

AP10 Medium Duty Flexible Chain Conveyor Features

  • Anodized aluminum frame
  • Frame width is 105 mm
    • Chain width is 102 mm
  • Frame height is 95 mm
  • Chain pitch is 38.1 mm(*)
  • Features a variety of drive options based on the conveyor layout.
  • Features a double t-slot – located on both sides of the conveyor frame.

Product Options for AP10 Pallet Conveyor

AP10 Medium Duty Pallet-Handling Conveyor Modules

  • Pallet stops
  • Pallet locates
  • Pallet diverters
  • Pallets
