- Frame: Constructed out of mk North America anodized aluminum extrusion with a UHMW-PE wear surface, 98 mm tall x 45 mm wide lane, single t-slot per side
- Width: Designed for pallets 240 mm wide up to 400 mm wide
- Load: Up to 80 lbs. per pallet load, 550 lbs. per drive
- Speed: Up to 90 fpm
- Length: Up to 15,000 mm
- Voltage: All standard US, Mexico and Canadian voltages
- Belting: T10 Timing Belt
- Side Rails: Incorporated into the frame design
- Stands: Compatible with all mk North America stand designs
- Modules: A wide selection available, refer to System Modules page

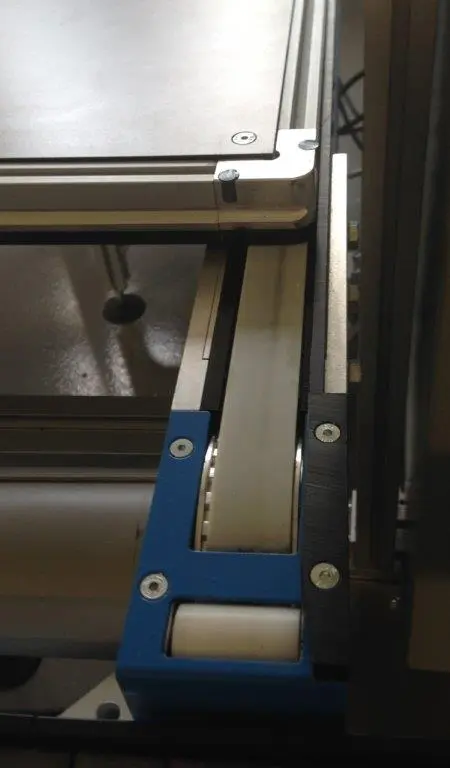

Small Pallet Timing Belt Conveyor
The ZRF-P 2045 small pallet timing belt conveyor is ideal in applications which require precise pallet movement. Timing belts can also be supply with a variety of belt coatings, allowing for additional flexibility in the line.
Select a CAD Model to Configure
Conveyor Details
Catalogs, Resources & Downloads for Small Pallet Timing Belt Conveyor
Technical Specifications for Small Pallet Timing Belt Conveyor
- Constructed using our mk North America 2045 series structural profile
- 98 mm tall anodized aluminum frame
- T-slots along the length of the conveyor for ease of mounting stands, side rails, and custom accessories
- The chain returns within the frame profile
- This provides a safer design
- A removable slot cover allows access to chain for cleaning and maintenance
- UHMW-PE slider bed with integrated side rail edge
- Dual sealed bearings for low maintenance design
- Positively driven via sprocket – allows conveyor to operate in either direction
- Maintenance free dual-sealed ball bearings
- Compatible with all mk North America 50 system profiles and components and most mk North America 40 system profiles and components
- CE Models available
