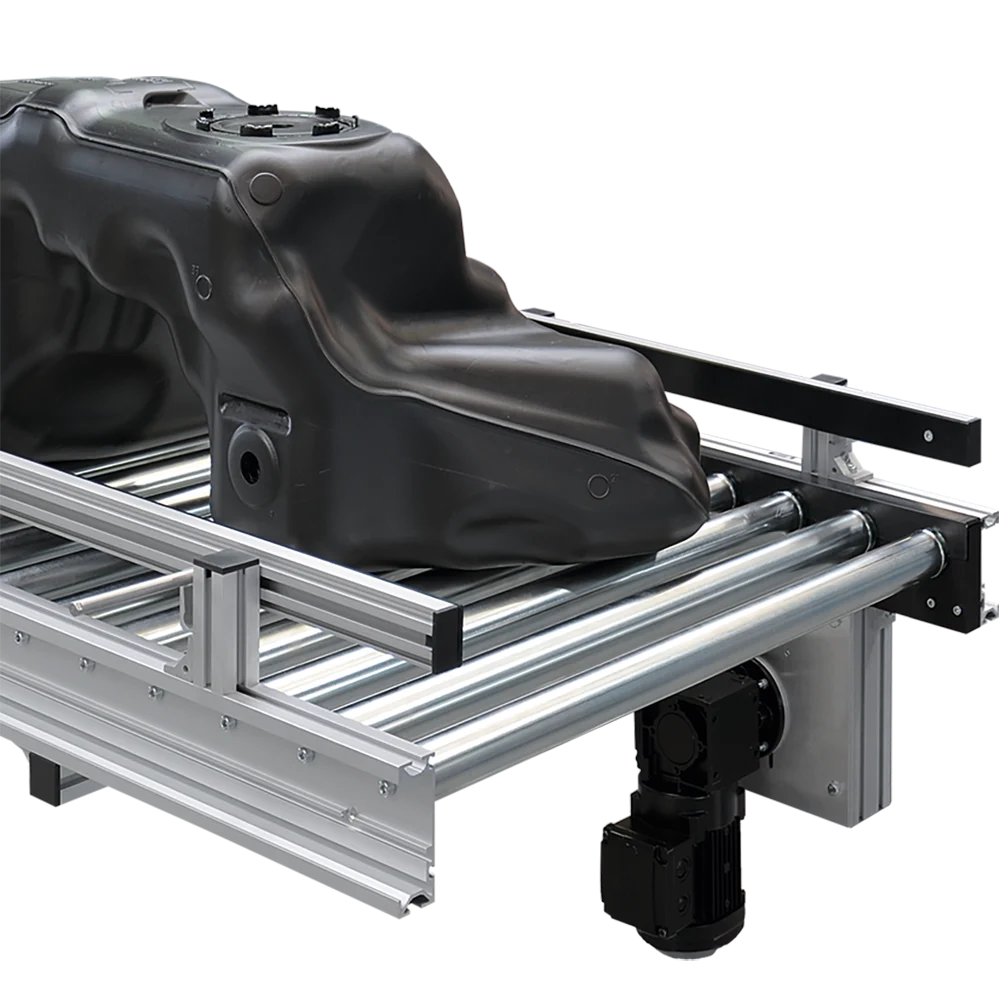

Driven Roller Conveyor

The RBT-P 2255 is a chain driven roller conveyor. This conveyor is ideal for conveying wide bulky products, shipping pallets and crates. This conveyor is dependable and reliable even in dirty or oily environments. This unit is also capable to indexing and staggering product; as well as accumulation. Straight running and curves conveyors are possible.

Select a CAD Model to Configure

Request a Quote

Product Information for Driven Roller Conveyor
  • Lengths: Up to 10,000 mm
  • Widths: starting at 420 mm
  • Loading: Depends on roller type and conveyor platform
  • Roller Diameters: 1.9 inch
  • Roller Material: Various metals and plastics
  • Roller Pitch: 100 mm
  • Voltage: All standard US, Mexico and Canadian voltages
  • Speeds: Up to 100 fpm

Catalogs, Resources & Downloads for Driven Roller Conveyor

Technical Specifications for Driven Roller Conveyor

Driven Roller Options:

  • Roller Diameter: 1.96″
  • Roller Material: Steel
  • Roller Coatings: PU and PVC
  • Roller Types:
    • Motor Drive: Sprocket driven, with Slip Drive for accumulation or Direct Drive for no accumulation

Product Options for Driven Roller Conveyor
  • Lane dividers and custom rails
  • Infeed and discharge chutes
  • Work tables
  • Blade stops and transfers
