Timing Belt Driven Linear Module

mk linear positioning module, VST, is designed for adjustment and positioning tasks. Typical applications include measuring, labeling, scanning, printing and marking. The structural profile features a high-quality surfaced coating that provides a low friction travel surface for the carriage. A stainless-steel cover strip protects the trapezoidal spindle from contaminants, making the VST virtually maintenance-free.

Offer low resistance and high acceleration; the fastest linear motion system mk offers
Can compensate for misalignments
Simple, cost-effective mounting
LZR system offers track roller assembly

Request a Quote

Technical Specs

VST 2015

Structural Profile: mk 2015 (50 x 50 mm)
Trapezoidal Spindle: Ø 16 mm x 4 mm pitch
Axial Spindle Load: 750 Newtons
Min. Stroke Length: 10 mm
Max. Stroke Length: 1,200 mm

VST 2011

Structural Profile: mk 2011 (100 x 100 mm)
Trapezoidal Spindle: Ø 20 mm x 4 mm pitch
Axial Spindle Load: 2,000 Newtons
Min. Stroke Length: 10 mm
Max. Stroke Length: 1,200 mm

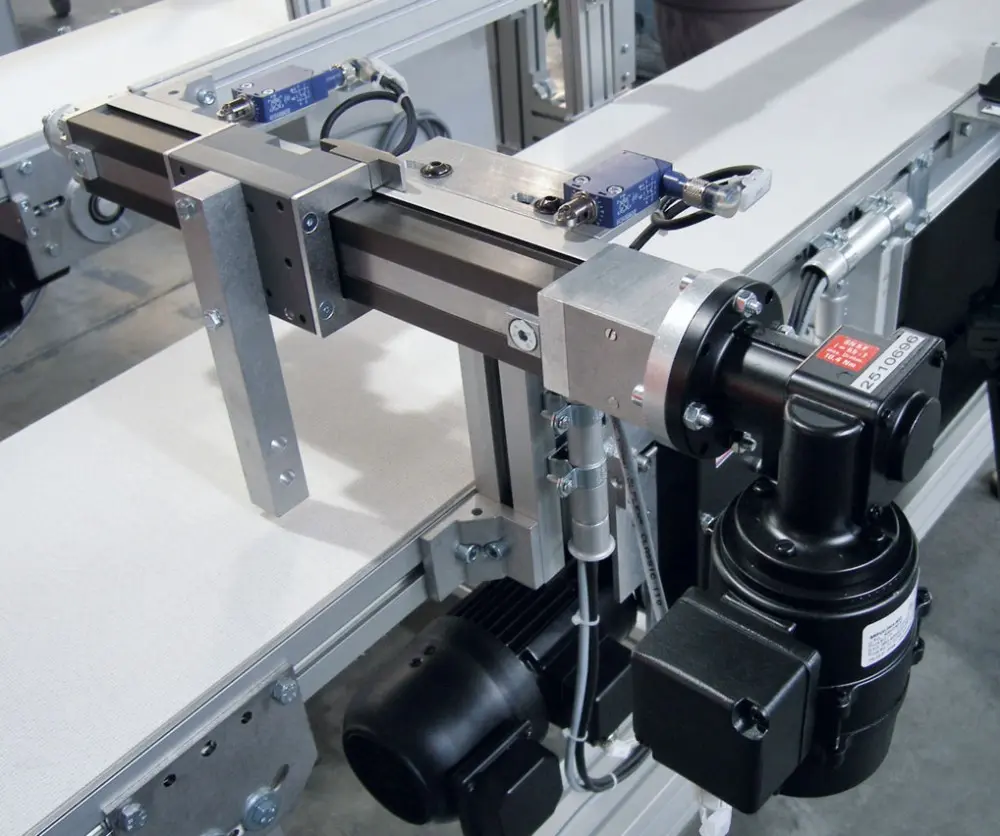

Multiple Configurations and Options

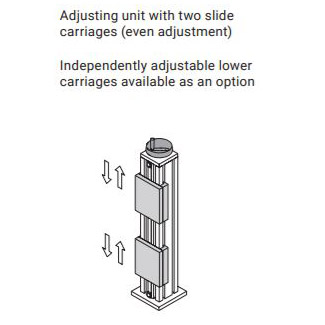

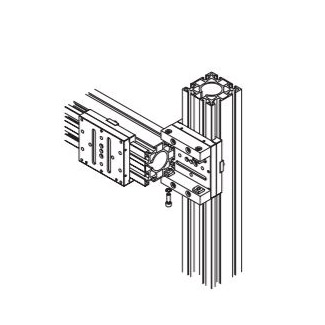

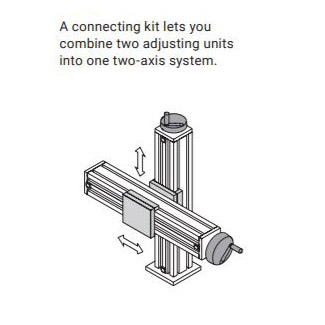

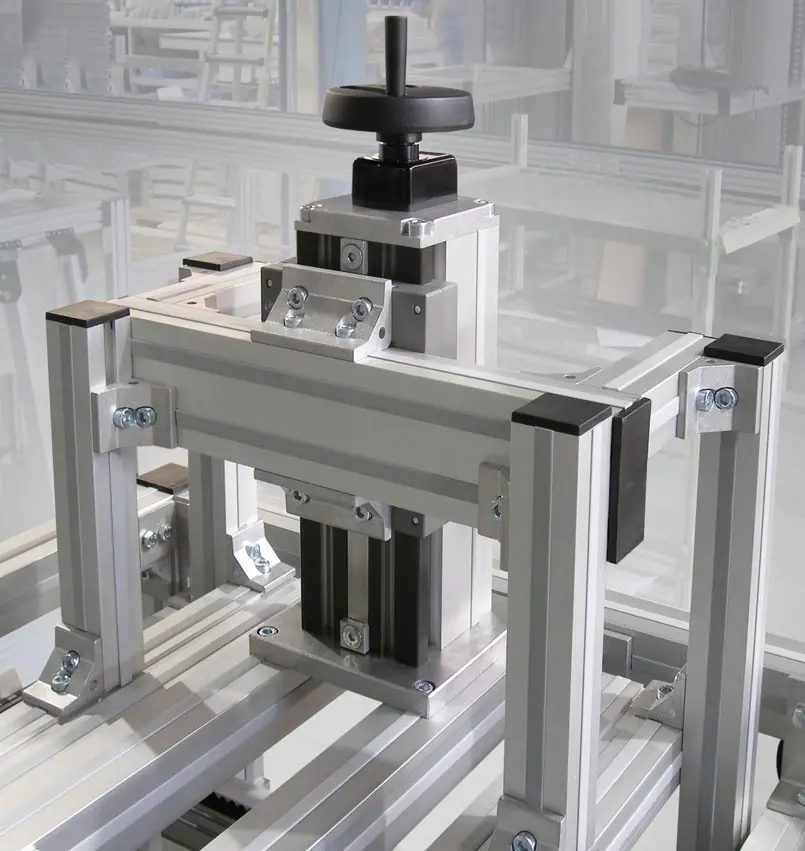

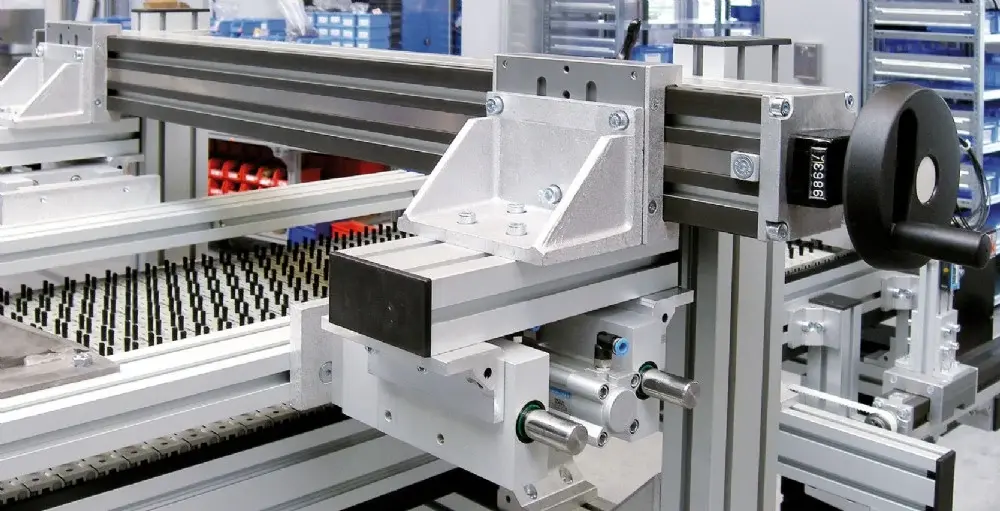

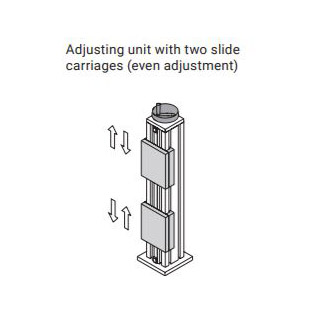

The VST modules can be set-up in a wide variety of configurations. Single or combination units can feature one or more carriages, traveling in a variety of directions. VST modules can further be customized from our wide variety of standard options; including type of base, handle wheel options, a well as motorized. See our catalog for complete details.
